485-CN3485W

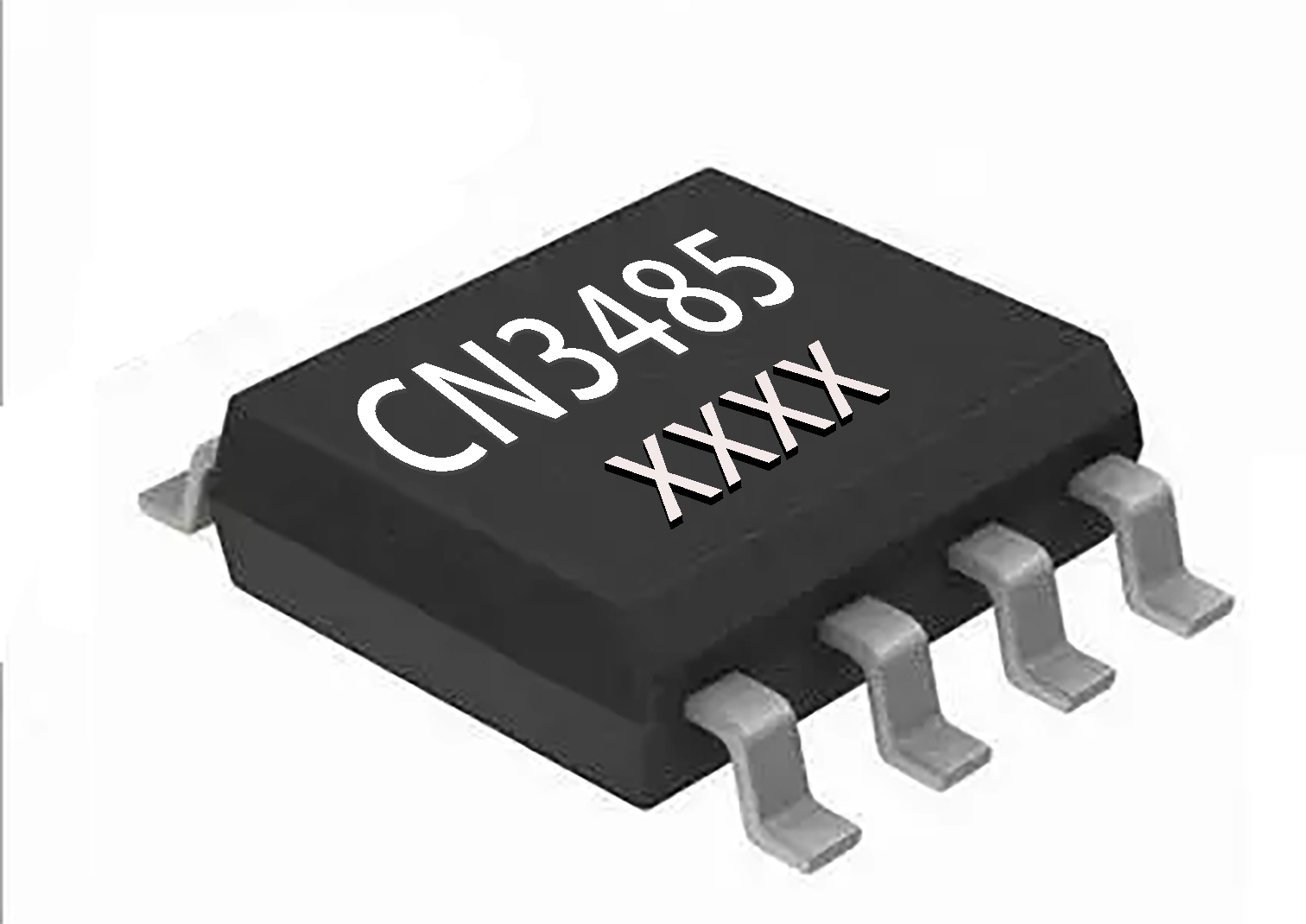

The CN3485W developed by Chipnorth Electronic Technology (Nanjing) Co.,Ltd is a 3.3V/5V, half-duplex, ±15kV ESD-protected RS-485/RS-422 transceiver circuit, which contains one driver and one receiver. The CN3485W has enhanced slew rate limiting, which helps reduce output EMI and reflections caused by mismatched terminal connections, and achieves 500kbps error-free data transmission. The CN3485W chip receiver input impedance is 1/8 unit load, allowing up to 256 transceivers to be connected to the bus for half-duplex communication. All driver outputs provide ±15kV human body model ESD protection, use 8-pin SO package, and operate in the -40℃ to +125℃ temperature range.

485

Chip Features

3.3V/5V supply voltage

enhanced slew rate limiting helps reduce output EMIand reflections caused by mismatched terminal connections, achieving 500kbps error-free data transmission

Communication ports provide ±15kVHuman Body ModelESDprotection

Communication ports provide ±15kVHuman Body ModelESDprotection

Roman">Fail-safefunction

With1/8unit load, up to256transceivers can be connected on the same bus

Using Roman">8pinSOpackage

Sample Request Product Data Sheet Preview
Chinese data sheet
Other related materials

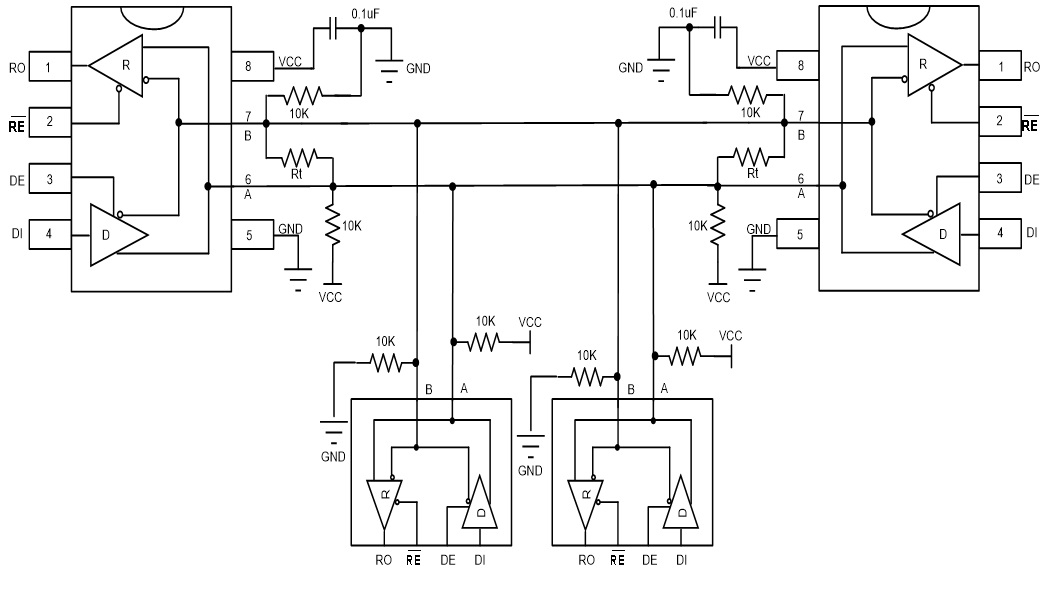

Typical Applications

Ordering Information

Device model

Encapsulation form

Quantity of tapes

CN3485W

SOP8

2500
