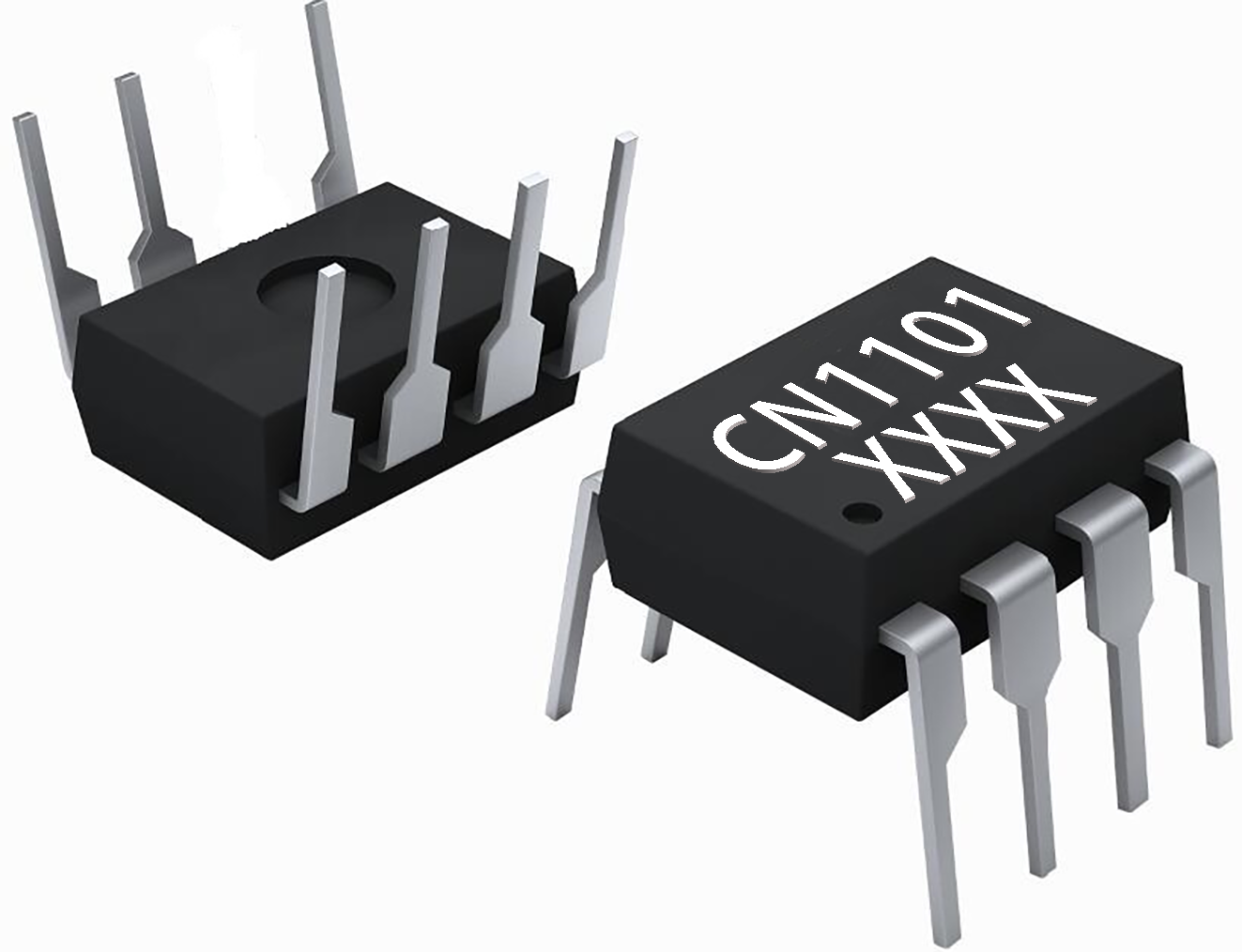

SSR ACDC-CN1101

CN1101 is a high-performance AC/DC converter suitable for wide voltage input. The chip integrates a PWM controller and a 900V power tube, uses high-voltage startup, and achieves ultra-low standby power consumption. By adopting PWM/PFM/PSM hybrid modulation technology, it ensures optimal system efficiency in the full load range, and also integrates frequency jitter technology to simplify system EMI design. CN1101 also provides extremely complete protection functions, including cycle-by-cycle overcurrent protection, CS resistor short-circuit protection, VDD overvoltage protection, overload protection, output short-circuit protection, feedback open-circuit protection, and over-temperature protection.
