Three-terminal positive regulators-CN78L05

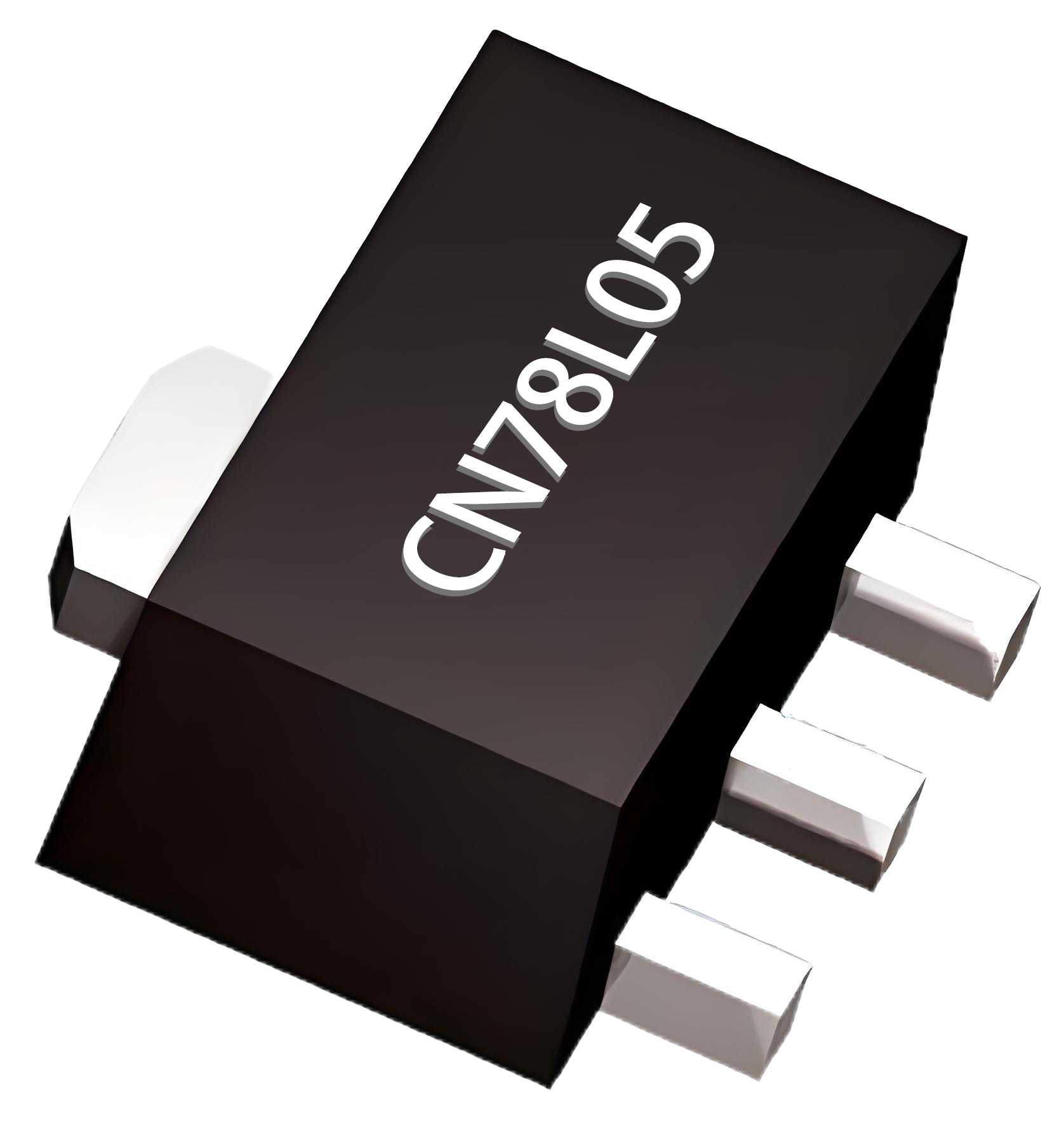

CN78L05 The voltage regulator design of this fixed voltage monolithic integrated circuit has a wide range of applications. These applications include on-card regulation to eliminate noise and distribution problems associated with single-point regulation. In addition, they can be used with power transfer elements to create high current regulators. Each of these regulators can provide up to 100mA of output current. The internal current limiting and thermal shutdown features of these regulators make them essentially immune to overloads. The CN78L05 is available in a SOT-89 package.

Three-terminal positive regulators

Chip Features

Input voltage range: 8V to 36V

Output voltage: 5V

Output current: 100mA

Quiescent current: 3.2mA

Three-terminal regulator

Stabilization without external components

Operating temperature range: -40°C - 105°C

Output short circuit protection

Thermal shutdown

Sample Request Product Data Sheet Preview
English Data Sheet
Other related materials

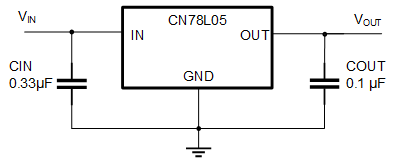

Typical Applications

Ordering Information

Product   Number

Package

Quantity/Tape

CN78L05

SOT89-3

1000/Tape
