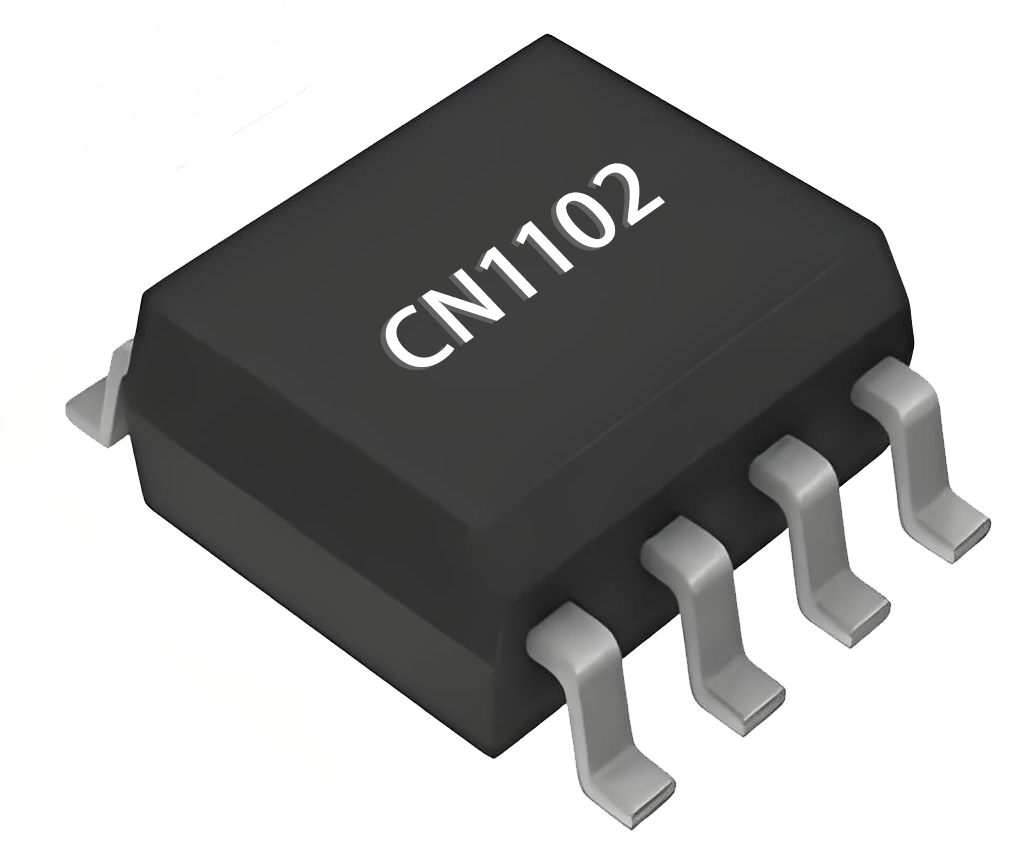

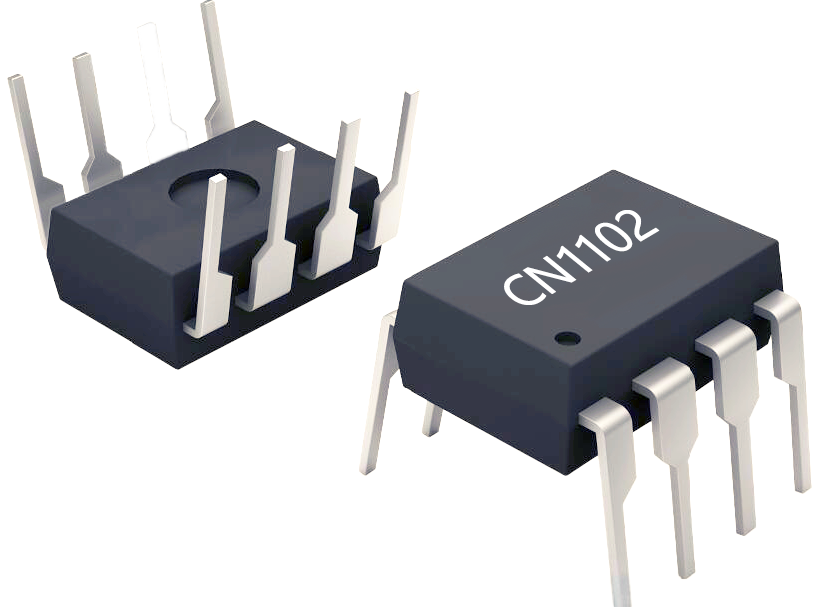

SSR ACDC- CN1102

CN1102AC/D/E/F is a highly performance AC/DC converter for wide voltage input, which integrates a PWM controller and 1000V MOSFET with high voltage startup to achieve ultra-low standby power consumption. CN1102AC/D/E/F adopts hybrid PWM/PFM/Burst modulation technology which ensures optimal system efficiency over the full load range, and also integrates frequency dithering technology to simplify system EMI design. CN1102AC/D/E/F provides excellent protection functions, including cycle-by-cycle overcurrent protection, CS resistor short-circuit protection, VDD over voltage protection, overload protection, output short-circuit protection, open feedback protection and over temperature protection.
